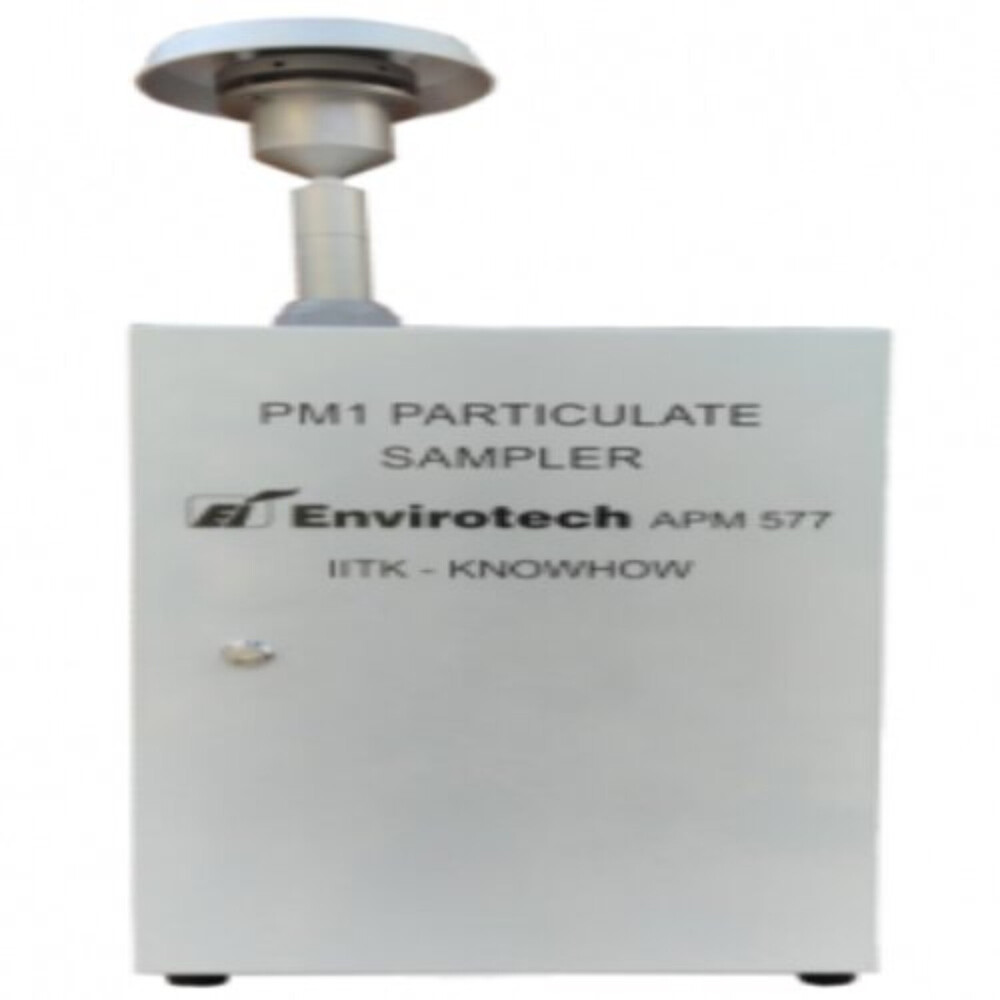

Ultrafine PM1 particulate sampler (APM 577M )

Name: Ultrafine PM1 particulate sampler (APM 577M )
Brand: ENVIROTECH INSTRUMENTS PVT LTD
Price: 136000 INR
Availability: InStock

Price 136000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ultrafine PM1 particulate sampler (APM 577M ) Specification

Orientation
Upright/Vertical

Automation Grade
Semi-automatic

Air Flow
1.0 m3/hr

Power Source
Electric

Efficiency
High Particle Collection Efficiency for PM1 Size

Measurement
PM1 Mass Concentration

Display Type
Digital Display for Flow and Timer

Usage & Applications
Measurement of PM1 in Ambient Air

Scrubber Type
Dry Sampler, Not Applicable

Sensor Type
Gravimetric Measurement (Filter-based)

Temperature
Ambient Operating

Instruments Type
Air Quality Sampler

Product Type
Particulate Sampler

Material
Steel

Cooling System
Air Cooling

Noise Level
< 60 dB

Processing Time
24 Hr Timer Controlled Operation

Capacity
Flow rate 1.0 m3/hr

Voltage
220 Volt (v)

Weight
Approx. 25 kg

Dimension (L*W*H)
W 420 x D 290 x H 630 mm (approx.)

Surface
Powder Coated

Data Recording
Manual / Optional Data Logger

Model Number
APM 577M

Power Consumption
Less than 300 W

Mounting
Tabletop/Floor Standing

Sampling Principle
Gravimetric for PM1

Flow Control
Critical Orifice and Electronic Control

Humidity Range
Up to 90% RH (Non-condensing)

Operating Temperature Range
5C to 50C

Inlet Design
Aerodynamic Inlet with PM1 Separator

Sample Collection Media
47 mm Diameter PTFE Filter

Ultrafine PM1 particulate sampler (APM 577M ) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Days

About Ultrafine PM1 particulate sampler (APM 577M )

Totally indigenous (designed, developed and made in India)
Uses a maintenance-free brush-less pump with low noise.
Lower sampling rate of 10 LPM reduces filter choking even in areas having high FPM levels.
Provision for attachment to sample gaseous pollutants simultaneously.
By locating impactor & filter holder assembly separate from all power dissipating components, the system ensures that the temperature of filter remains close to the ambient temperature and there is no chance of losing volatile fraction of PM1.
Compact and portable for convenient field operation.

Advanced PM1 Sampling Technology

Equipped with an aerodynamic inlet and PM1 separator, the APM 577M captures ultrafine particles efficiently. The gravimetric sampling paired with a 47 mm PTFE filter ensures precise mass concentration measurement, making it ideal for rigorous air quality studies.

Versatile Application & User-Friendly Design

The sampler offers upright, tabletop, or floor-standing orientation, making it suitable for both laboratory and field settings. With a digital display, timer-controlled 24-hour operation, and easy-to-handle structure (approx. 25 kg weight), it caters to various monitoring needs.

Reliable Operation & Accurate Results

Integrated electronic flow control via a critical orifice maintains consistent sampling at 1.0 m3/hr, while the steel construction and powder-coated surface promise long-term durability. Operating efficiently in challenging temperatures and humidity, the APM 577M delivers reliable data each time.

FAQ's of Ultrafine PM1 particulate sampler (APM 577M ):

Q: How does the APM 577M sampler measure PM1 concentration in ambient air?

A: The APM 577M uses a gravimetric measurement principle, collecting airborne PM1 particles on a 47 mm diameter PTFE filter through an aerodynamic inlet. The collected sample mass is then determined by weighing the filter before and after sampling, providing an accurate PM1 mass concentration.

Q: What is the process for collecting and recording air samples with this device?

A: Air is drawn through the sampler at a controlled flow rate of 1.0 m3/hr using a critical orifice and electronic control. The device operates for a user-set period (up to 24 hours), after which the PTFE filter is removed and weighed. Data can be recorded manually or with an optional data logger.

Q: When is the ideal time to use the APM 577M sampler?

A: This sampler is well-suited for continuous or periodic air sampling, particularly during air pollution episodes, regulatory monitoring periods, or any time high-resolution PM1 data is needed. Its 24-hour timer control allows for unattended overnight or day-long operation.

Q: Where can the APM 577M be installed or used?

A: Due to its compact, upright design and air cooling system, the APM 577M can be set up on tabletops or floors in laboratories or field locations. It is designed for ambient air monitoring in a variety of environments, provided ambient conditions range between 5C-50C and up to 90% RH (non-condensing).

Q: What are the main benefits of using this particular sampler for PM1 measurements?

A: The APM 577M offers high particle collection efficiency for PM1, precise electronic flow control, low power consumption, and a quiet operation. Its durable steel, powder-coated structure, and user-friendly features ensure reliable, accurate, and consistent measurements across diverse applications.

Q: How is the flow rate maintained during sampling?

A: Flow rate is maintained at 1.0 m3/hr using a combination of a critical orifice and electronic flow controller, which continuously regulates air volume regardless of filter loading, ensuring sampling consistency and data accuracy.
